Rob Pruzan

Project snapshot

I've been working on the project for about 1.5mo, so good to snapshot the state of progress before I write any new updates

Currently, the project is the earliest version you can probably do something useful in it.

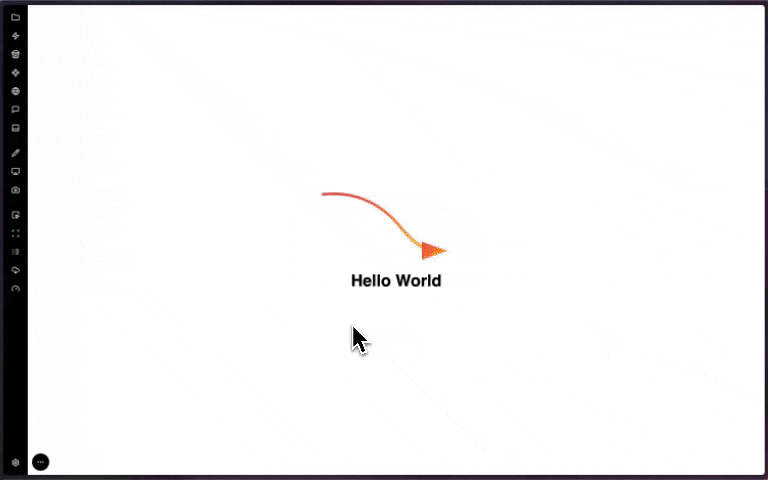

Here's a broken demo (2x speed), and the commit the project was at when this was posted

There are quit a bit of moving parts to make all this happen:

• the app
  • website in the demo video
• the device bridge
  • a websocket server running on my computer that lets app interact with my operating system/file system
• the daemon
  • this is the process that creates new dev servers
  • it manages all active dev servers
  • tries to prewarm servers you may create so starting a project is instant
  • all happens locally on your computer
• devtool script
  • a script injected into the iframe of the agent's website
  • how the app communicates with the website the agent is making

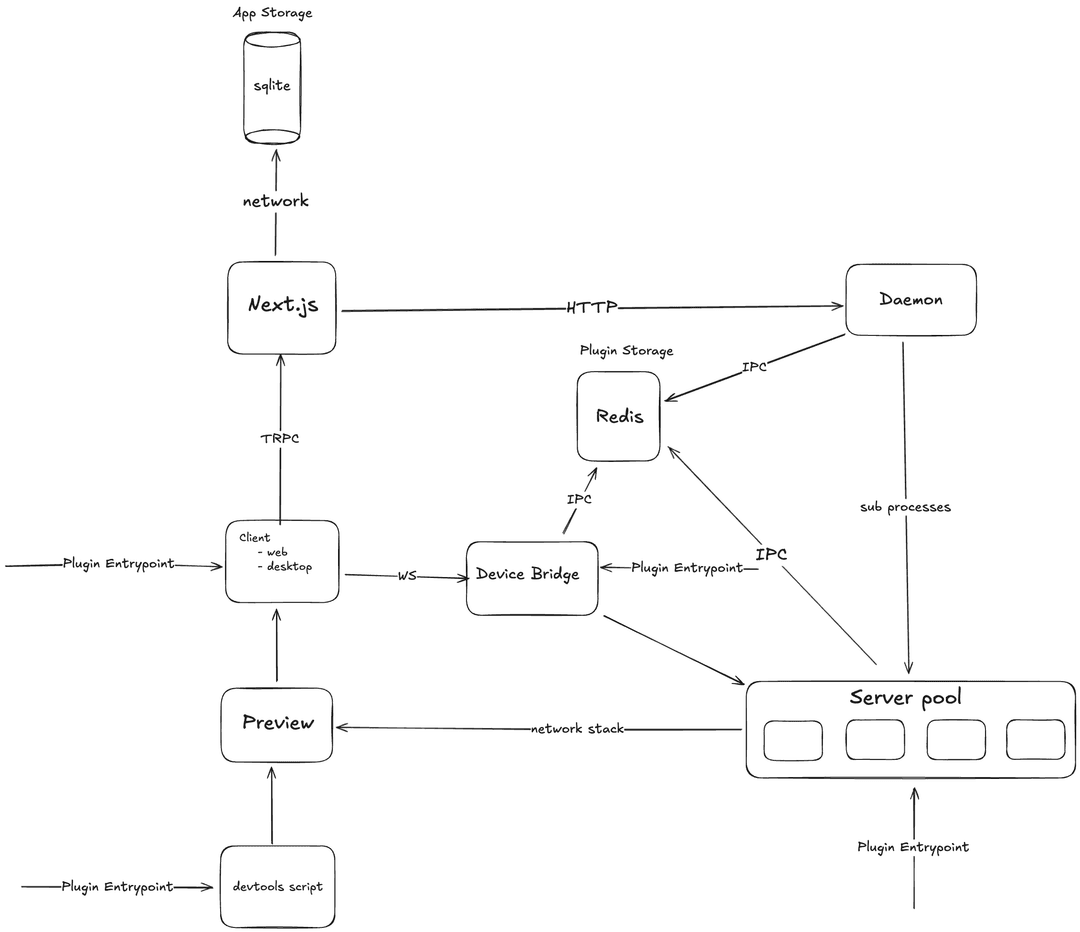

Visually this looks like:

this is exactly how the current system is architected when this log is posted

Every service has a distinct reason for existing:

• zenbu app
  • I want this to be a website, not a local app
• device bridge
  • I need some way to read/write the code on the users computer from the website
• daemon
  • I need a robust system for managing the life cycles of all the servers the app makes
• devtools script
  • Since the dev server's are are all on different origins from the app, I can't do anything (like run code) in the child iframe without iframe.postMessage and window.parent.postMessage.
  • The devtools script is what will enable me to actually have data to build all the devtools I want

I also want to keep this decently modular for when I introduce a plugin system.

Isolation through explicit services is not required, but forces me to generate API's/boundaries, which I'll need to do anyways to support plugins.

Now going into specifics for each service:

Zenbu app

My go to for making web apps is next.js, TRPC, and drizzle. I won't really be using many next.js features here, so what's most interesting is TRPC.

The most important TRPC feature is the glue it provides between your frontend/backend. You define all your endpoints through TRPC, and then interact with them through a type safe RPC on the client.

All the RPC's by default have tanstack query hooks implemented for them, so once you write an endpoint, you automatically have a type safe query/mutation.

And if you take it one step further and define your database schema in typescript (drizzle) you can provide end to end type safety- from your database schema, to your frontend.

I plan on having a local sqlite instance for any app related storage (preferences etc), but the true storage for this app will be a simple KV store (Redis).

I want all core functionality to be implemented as a plugin at some point, and plugins absolutely should not have to define tables in a relational database for storage. I could of course make an abstraction on top of sqlite to let the plugins store data in sqlite without having to actually define that table, but i'd end up just making a K/V store API.

Device bridge

This is the WebSocket server that bridges the zenbu app to the local filesystem/operating system. This is where the plugin's that define "agents" will live.

If the goal is to just read/write to a directory through the website, then this server could be 50 lines of code. The complexity comes from actually building a reliable agent that does what I want it to do.

Agents are pretty easy to build when you don't have any infrastructure constraints (the project and agent are running on the same device), but there are an unbelievable amount of ways an agent can fail. That's why I decided to use Effect here (and everywhere else around this project).

Effect is a lovely typescript library that gives you everything you wished typescript had, and primitives for building robust distributed apps.

The 2 most impactful features Effect gave me when making the first real agent for Zenbu was automatically typed errors and a very good dependency injection system.

Typed errors are obviously a win (I know exactly how every function can fail before calling it), but the dependency injection sounds less useful, as you normally hear about it in the context of testing.

Instead of referencing some global service/function, make it a parameter to the function, so you can switch implementations. This normally sucks to do because you need to drill this service through several layers of function calls as an argument.

In React, this is a bit easier. You can use Context to define a dependency to some data higher in the "tree" without having to explicitly pass it as a parameter to the component.

The biggest flaw with React Context (not react's fault, it's a limitation of TS) is that if you use a component outside of its context boundary, it will either throw an error, or reference the default data provided to the context (which is useless data 100% of the time)

I always really wanted React context, just for my server side code. I want to define some data dependency in my call stack, and automatically read from it, without drilling down arguments through the call stack.

React can achieve this because they simulate their own call stack- they call it a "Fiber" tree. The execution of a component is not handled by the javascript engine, but internally by react. When you call useContext in a react component, you are creating a dependency to data somewhere higher in the call stack. To get the data provided by this "higher function", react traverses up its ancestors till it finds the context.

Effect's unit of execution, like React components, are also fibers. The execution is managed by the Effect library, so they can implement the same API.

But, Effect solves the "calling a function without its dependencies and it errors" problem. An Effect (the function you write) automatically has all the dependencies it has in the type signature. This means you cannot run the effect without providing the dependency (you will get a type error).

They can do this because of how function generators work in TypeScript, you should read the effect docs if you're interested in how this works

This is useful for my agent for a pretty simple reason, I'm implementing some complex tools that share a lot of data in unusual ways. The first system I built without effect was quite difficult to reason about and iterate on. Context (and typed errors) reduced the complexity to just the essence of the problem.

Daemon

I think about the daemon as a local serverless runtime.

Traditional serverless runtimes run in the cloud as a way to run stateless functions (like serving the HTML, JS & CSS of a website). They spin up compute for you on demand, nearly instantly. They keep compute for you prewarmed so it doesn't need to cold start to run your function. They handle scaling down the amount of compute you're using if you don't need it.

This is everything I need in Zenbu to allow users to create expensive dev servers as fast as creating a markdown file. All the considerations you may have when building a cloud based serverless runtime, Zenbu has, but all the resources being used are local.

The core is about 80% finished, I haven't actually implemented prewarming or automatic shutdown of servers, but the basics like creating, starting, stopping servers is all there. And of course, it's all built in Effect

The daemon has a simple HTTP server as an interface for the runtime. The reason it's an http sever, even though all these services are running directly on the users computer, is that I may want to create a managed service in the cloud so that you don't need to run these projects on your computer. I don't want services to interact via IPC unless I know they will always be on the same machine.

Devtools script

Reminder, this script is what allows us to communicate between the iframe (website being developed) and the real app.

I wanted to make sure the DX for this script was on point before writing any code for it.

The simplest way to embed this script into the iframe is to inline a script tag with javascript that does what I want.

The experience writing that code would be awful, it would be all in an html string, it would be javascript (ew), and I would have to install libraries through cdn's

What I really want is to use typescript, install libraries via npm, and have the output bundled into a single javascript file that I can load into the iframe.

Luckily JS library publishers had to solve this problem, so there are tools like tsup to solve it.

So step one is having a tiny dev server that serves a little JS file bundled by tsup. After getting this setup, I could write typescript and install any libraries I pleased. tsup handles creating that big ugly javascript string that I need to load into my iframe

The next problem is that when I actually change the devtool script code, how do I setup hot reloading? tsup --watch is not enough, since the environment that the code is actually running in needs to be alerted to get the latest devtool script.

The data flow looks something like:

• I write code in my file
• it needs to get compiled and bundled
• I overwrite the previous bundle, so my server that serves the bundle will automatically point to latest
• the devtool script is inside an iframe, and the iframe is inside the app
• I need some way to reload the iframe when the devtools script changes

The way I decided to solve this was to abuse how fast refresh works in next.js, and anytime the devtool script changed, I changed a variable (by writing to a file) that holds a random number within the Next.js app. Anytime that variable changes, I run a function that reloads the iframe on the page.

A lot of effort to get hot reloading working, but it would be awful without it.

The devtools script is a little interesting right now, even though I haven't implemented many devtools yet.

One cool bit is how screenshots are implemented. I don't want to ask the user for permission every time I want to take a screenshot cause that would be super annoying, so I need to derive the screenshot from the DOM itself instead of relying on browser API's. For this I'm using modern screenshot

But, I have this other feature (as seen in the demo video) where the user can overlay a canvas over the page and draw. I don't want to create any UI inside the actual iframe, I want all the visualizations running in the main app. A problem arises, the screenshot I take of the dom will not include the tldraw drawing.

But, I did something clever- when the user takes a screenshot of an area, I take 2 screenshots. One of the tldraw drawing (as a png), and one of the users dom. I then overlay the 2 screenshots into one image. It was a little tricky to get working.

Whats next

This is a decent snapshot of current project.

The current UX on the app isn't too interesting to talk about yet since it's all just prototype UI that I will throw away in the future when I figure out the best way to manage windows/projects. The UX will most likely end up feeling like obsidian.

Next goal is to build out an automatic replay system to provide to the agent as context. I already built out the infra for this system when working on React Scan, so hopefully wont take longer than a couple days
